Vacuum cleaner

The continuous development of brushless motor, intelligent control, sensor and lithium battery technology makes vacuum cleaner application to MOS more and more high requirements, power density is also increasing.

Ecko Micro offers low internal resistance suitable for vacuum cleaner applications, the DFN small volume package with low FOM [RDS(0n)XQg] achieving very low on-off and on-off losses. In addition, very low parasitic parameters enable higher frequency and very high power density designs. Help manufacturers to achieve optimal and efficient solutions for vacuum cleaner design.

• PRODUCT CHARACT- ERISTICS

  > Developed on SGT platform with low FOM value
  > Strong impact resistance, suitable for motor drive and BMS applications
  > High reliability products, has been recognized by many vacuum cleaner manufacturers
  > -40V-60V voltage range, multiple specifications of products to choose from
  > PDFN series are fully packaged to meet the needs of different shapes of vacuum cleaners

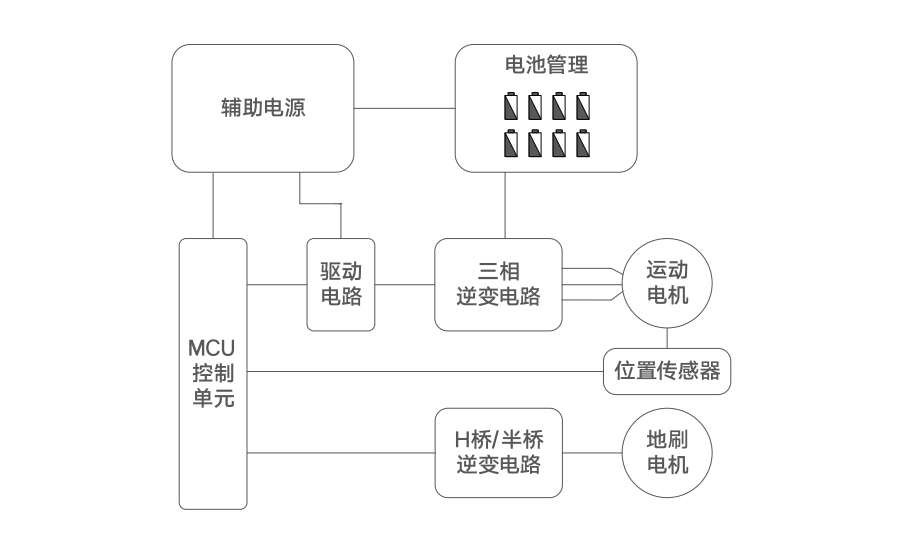

• APPLICATION TOPOLOGY

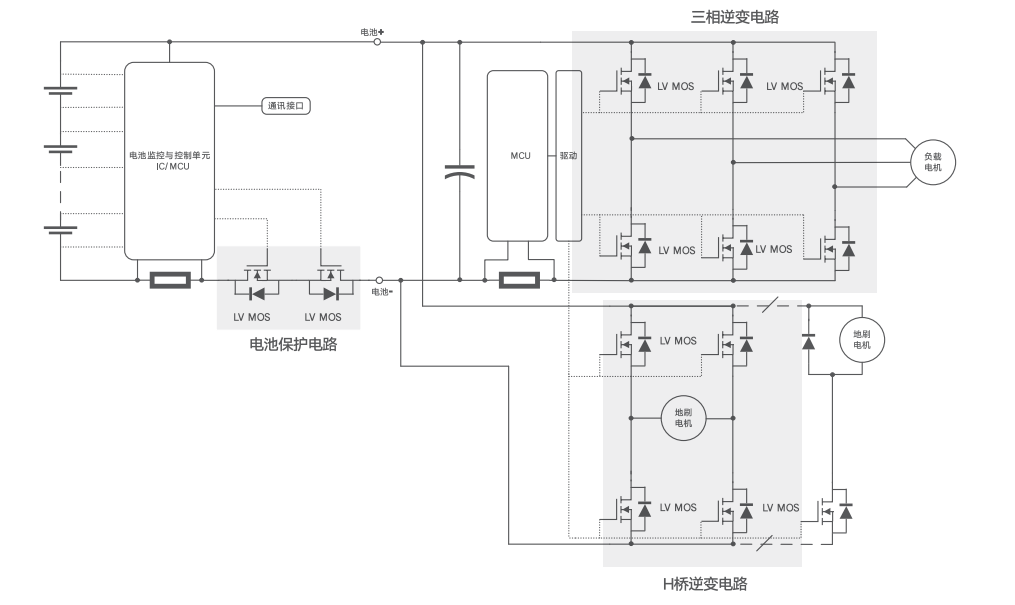

• APPLICATION SCHEMATIC DIAGRAM



• PRODUCT LIST

  • NO. TYPE IT(RMS)(A)

    "IGT3(mA)
    MAX"

    VDRM(V) Packsge

  • NO. TYPE IT(RMS)(A)

    "IGT3(mA)
    MAX"

    VDRM(V) Packsge
